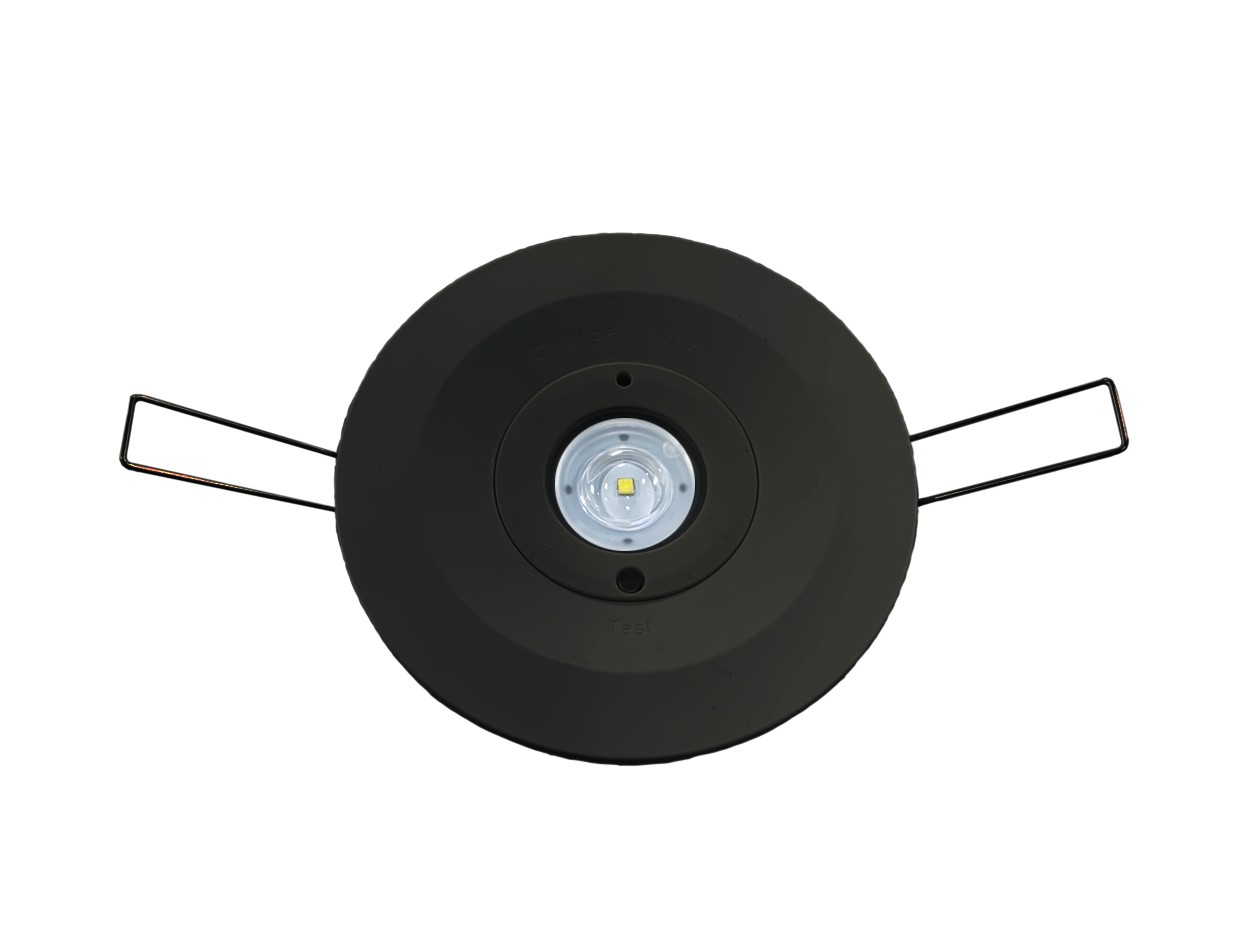

UK_Lifelight Head & Ring_Blk_FP

Lifelight Emergency Luminaire Head and Adaptor Plate Black

UK_Lifelight Head Weatherproof_FP

Lifelight Emergency Luminaire Head IP44

/sites/default/files/2021-09/Lifelight-Hero-Image_1.png
UK_Lifelight Head & Ring Separate_12
UK_Lifelight Head_Blk_FP
UK_Lifelight Head & Ring_Blk_FP
UK_Lifelight Head Weatherproof_FP

Lifelight
Recessed Emergency Luminaire

The Lifelight Recessed Emergency Luminaire is a sleek architectural recessed emergency light that is ideal for a variety of scenarios including escape and open area applications. The range comprises of IP20 and IP44 options with lithium batteries to ensure long life and significant maintenance savings over alternative options. Each product is supplied with a 145mm adaptor plate to enable an easy retrofit installation.

Features

  • LED

    LED

  • Recessed Mount

    Recessed Mount

  • IP20

    IP20

  • IP44

    IP44

  • Non Maintained

    Non-Maintained

  • Escape Lens

    Escape Lens

  • 3 Hours

    3 Hrs

  • LifeP04 Battery

    LiFeP04

Compliance

  • BS-EN-60598-2-22

    BS EN 60598-2-22

Range & Testing Compatibility

  • clevertronics emergency lighting range clp icon

    CLP Premium Lithium

  • clevertronics emergency lighting range l10 icon

    L10 Lithium Nanophosphate

  • Zoneworks XT HIVE

    Zoneworks XT Hive

  • Clevertest Plus System

    Clevertest Plus

  • clevertronics emergency lighting testing option dali icon

    DALI

Product Specifications

Luminaire Classification Table

CLP/L10 X 0 AD 180
Lifelight Non-Maintained
CLP/L10 X 0 AD 180
CLP/L10 X 0 ADF 180
Lifelight Non-Maintained with Automatic Testing
CLP/L10 X 0 ADF 180





Line Diagrams

Photometry Polar Curves

Spacing Table

ESCAPE ROUTE SPACING DIAGRAM Range 2.7M 3m 4m 5m
LIFELIGHT IP20: SPACING TABLE AND MOUNTING HEIGHTS
ESCAPE ROUTE SPACING DIAGRAM Range 2.7M 3m 4m 5m
Lux 1
Escape Routes 1 Lux min. along centre line
clevertronics emergency lighting icons spacing axial
Axial
clevertronics emergency lighting icons spacing transverse
Transverse
clevertronics emergency lighting icons spacing axial to wall
Axial to Wall
clevertronics emergency lighting icons spacing transverse
Transverse to Wall
CLP
L10
CLP
L10
CLP
L10
CLP
L10
10.5
10.1
10.5
10.1
4.5
4.4
4.5
4.4
11.3
10.3
11.3
10.3
4.2
4.4
4.6
4.4
11.4
10.9
11.4
10.9
4.6
4.4
4.4
4.1
11.6
11.1
11.6
11.1
4.4
4.1
4.2
4.4

Spacing Table

OPEN (ANTI-PANIC) SPACING DIAGRAM Range 2.7m 3m 4m 5m
LIFELIGHT IP20: SPACING TABLE AND MOUNTING HEIGHTS
OPEN (ANTI-PANIC) SPACING DIAGRAM Range 2.7m 3m 4m 5m
Open (Anti-panic) Areas
0.5 Lux min. within core area
Luminaires arranged in a regular array
clevertronics emergency lighting icons spacing axial
Axial
clevertronics emergency lighting icons spacing transverse
Transverse
clevertronics emergency lighting icons spacing axial to wall
Axial to Wall
Transverse to wall
Transverse to Wall
CLP
L10
CLP
L10
CLP
L10
CLP
L10
11
11
11
11
3.5
3.7
3.5
3.7
11
11.5
11
11.5
4
3.8
4
3.8
13
12.9
13
12.9
4
3.9
4
3.9
14
13.9
14
13.9
4.5
4
4.5
4

Spacing Table

Open (Anti-panic) Spacing DIAGRAM RANGE 2.7m 3m 4m 5m
Lifelight IP44 (Area Lens): 0.5 LUX SPACING TABLE AND CEILING MOUNTING HEIGHTS
Open (Anti-panic) Spacing DIAGRAM RANGE 2.7m 3m 4m 5m
Open (Anti-panic) Areas 0.5 Lux min. within core area
Luminaires arranged in a regular array
Transverse to wall
Transverse to Wall
clevertronics emergency lighting icons spacing transverse
Transverse
clevertronics emergency lighting icons spacing axial to wall
Axial to Wall
clevertronics emergency lighting icons spacing axial
Axial
CLP
CLP
CLP
CLP
5.4
11.1
5.8
11.1
5.8
12.1
5.8
12.1
5.4
15.3
5.4
15.3
3.4
17.2
3.4
17.2

Spacing Table

Escape Route Spacing Diagram Range 2.7m 3m 4m 5m
Lifelight IP44 (Escape Lens): 1 LUX SPACING TABLE AND CEILING MOUNTING HEIGHTS
Escape Route Spacing Diagram Range 2.7m 3m 4m 5m
Lux 1
Escape Routes 1 Lux min. along centre line
Transverse to wall
Transverse to Wall
clevertronics emergency lighting icons spacing transverse
Transverse
clevertronics emergency lighting icons spacing axial to wall
Axial to Wall
clevertronics emergency lighting icons spacing axial
Axial
CLP
CLP
CLP
CLP
-
-
9.7
23.0
-
-
9.5
24.2
-
-
4.7
22.5
-
-
3.9
18.8
DATASHEET BROCHURE IES LDT REVIT INSTALL GUIDE

The Lifelight Recessed Emergency Luminaire has product variation to specify. Download the family files above or find the technical documents you need using the search options below

Specifying a project? Use our technical resource search

Find the documents you need for a specification with our technical resource search. All our product technical files and downloads in one space.

Choose an emergency lighting solution

Select the right range and testing option solution for your project or application.
If you are not sure what you need, check out our solutions page for quick guide.

Range Comparison Clevertronics CLP Premium Logo Clevertronics L10 Optimum Logo
Maintenance Savings vs. NiCD
50%
80%
Standard Clevertest Plus
Yes
Yes
Cost of ownership
Low
Lowest
Battery Life
+8 Years
+12 Years
Option Comparison Clevertronics Zoneworks XT Hive logo Clevertronics Clevertest Plus System logo
Testing Method
Self testing
Remote monitor & test
Lifetime system support
No
Yes
Electronic Reporting & Maintenance Log
Yes
Yes
