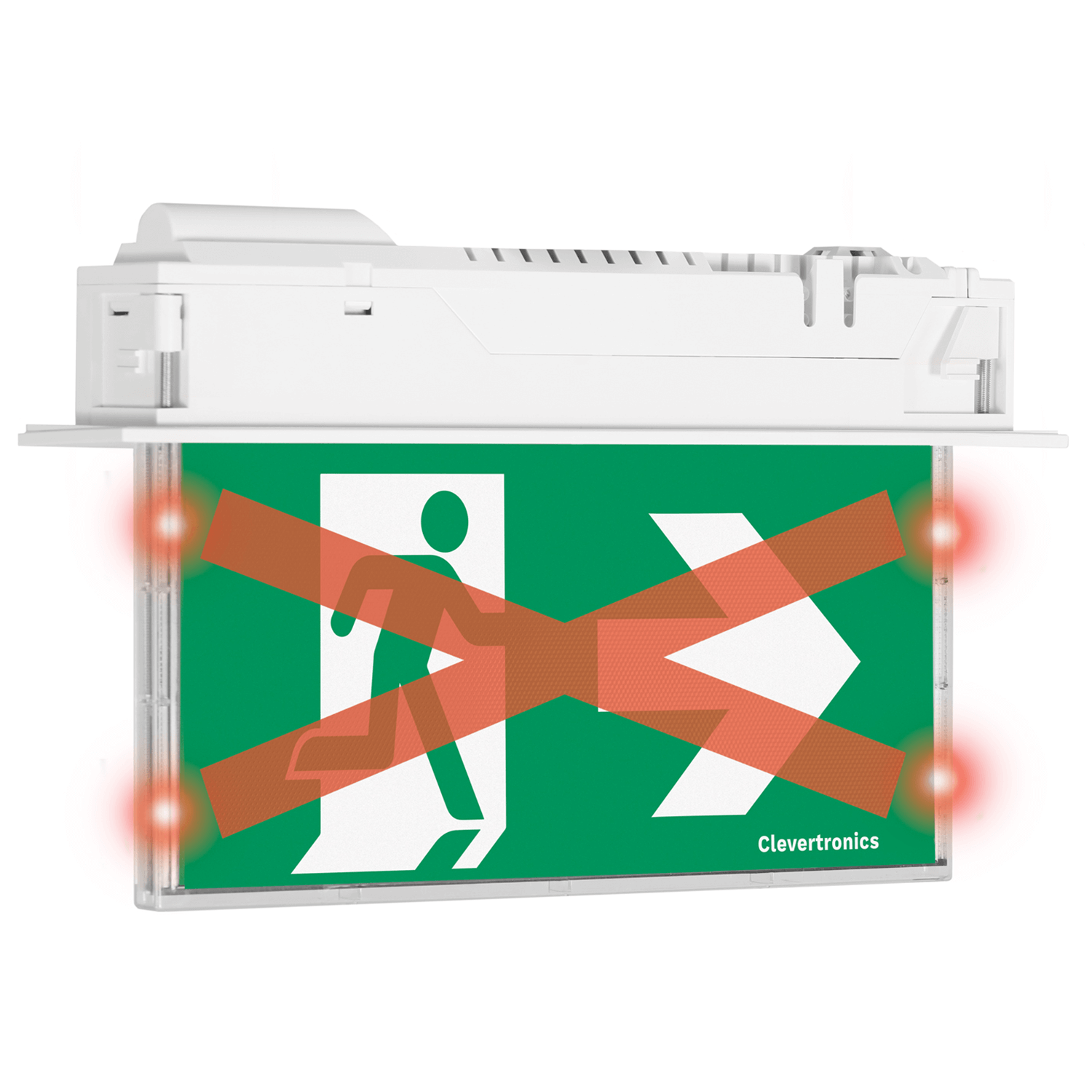

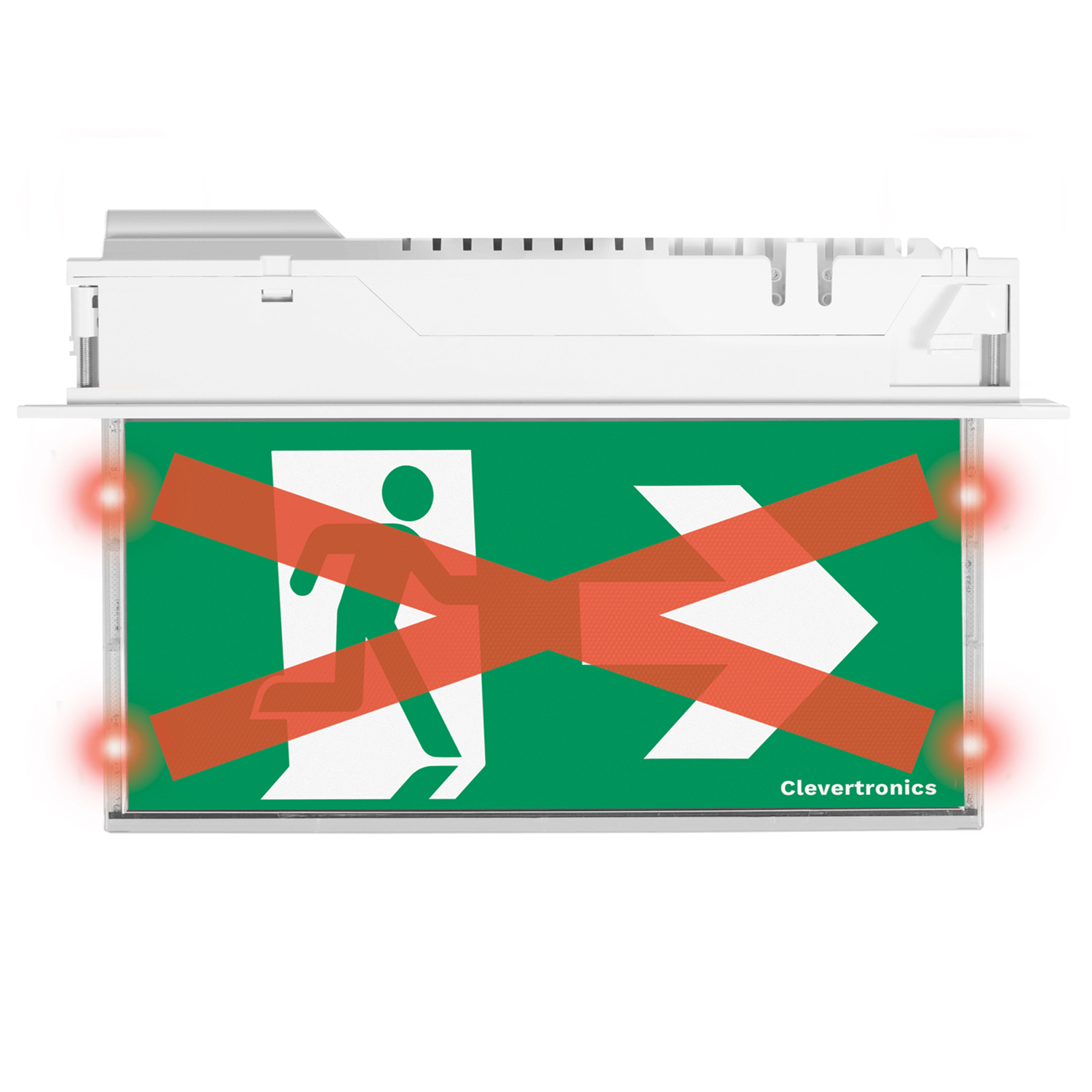

The CleverEVAC Dynamic RED X sign can display a red cross with flashing corners, alerting those evacuating to seek an alternative exit. Using advanced lighting and printing technology, the red cross with flashing corners has been proven through the Fire Safety Engineering Group (FSEG) research to be intuitive and effective in demonstrating negative enforcement. The sophisticated look and design of the blade will satisfy all architectural requirements and is available as a recessed or surface mount unit.

The RED X mode is triggered either by a 24VDC or voltage free open/close signal from the fire detection or other building safety system. The GREEN mode is also built in, to accommodate different fire and evacuation scenarios. The use of the RED X must be designed and documented by a fire safety engineer.

Compliance

  • BS-EN-60598-2-22

    BS EN 60598-2-22

  • EN 1838

    EN1838

  • BS EN ISO 7010

    ISO7010

Range & Testing Compatibility

  • clevertronics emergency lighting range clp icon

    CLP Premium Lithium

  • clevertronics emergency lighting range l10 icon

    L10 Lithium Nanophosphate

  • Zoneworks XT HIVE

    Zoneworks XT Hive

Product Specifications

Luminaire Classification Table

CLP / L10 X 1 AG 180
Cleverevac Dynamic red x blade
CLP / L10 X 1 AG 180
CLP / L10 X 1 AFG 180
Cleverevac Dynamic red x blade with automatic testing
CLP / L10 X 1 AFG 180

Line Diagrams

Spacing Table

DATASHEET BROCHURE IES LDT REVIT INSTALL GUIDE

CleverEVAC Dynamic RED X Blade Exit Light family data files can be downloaded here, for a specific model use the search filters below. To request assistance from your local Clevertronics office, use the Contact form at the bottom of the page.

Clevertronics Product
AUD
Format: 9.99

Specifying a project? Use our technical resource search

Find the documents you need for a specification with our technical resource search. All our product technical files and downloads in one space.

Choose an emergency lighting solution

Select the right range and testing option solution for your project or application.
If you are not sure what you need, check out our solutions page for quick guide.

Range Comparison Clevertronics CLP Premium Logo Clevertronics L10 Optimum Logo
Maintenance Savings vs. NiCD
50%
80%
Standard Clevertest Plus
Yes
Yes
Cost of ownership
Low
Lowest
Battery Life
+8 Years
+12 Years
Option Comparison Clevertronics Clevertest Plus System logo Clevertronics Zoneworks XT Hive logo
Testing Method
Self testing
Remote monitor & test
Lifetime system support
No
Yes
Electronic Reporting & Maintenance Log
Yes
Yes
